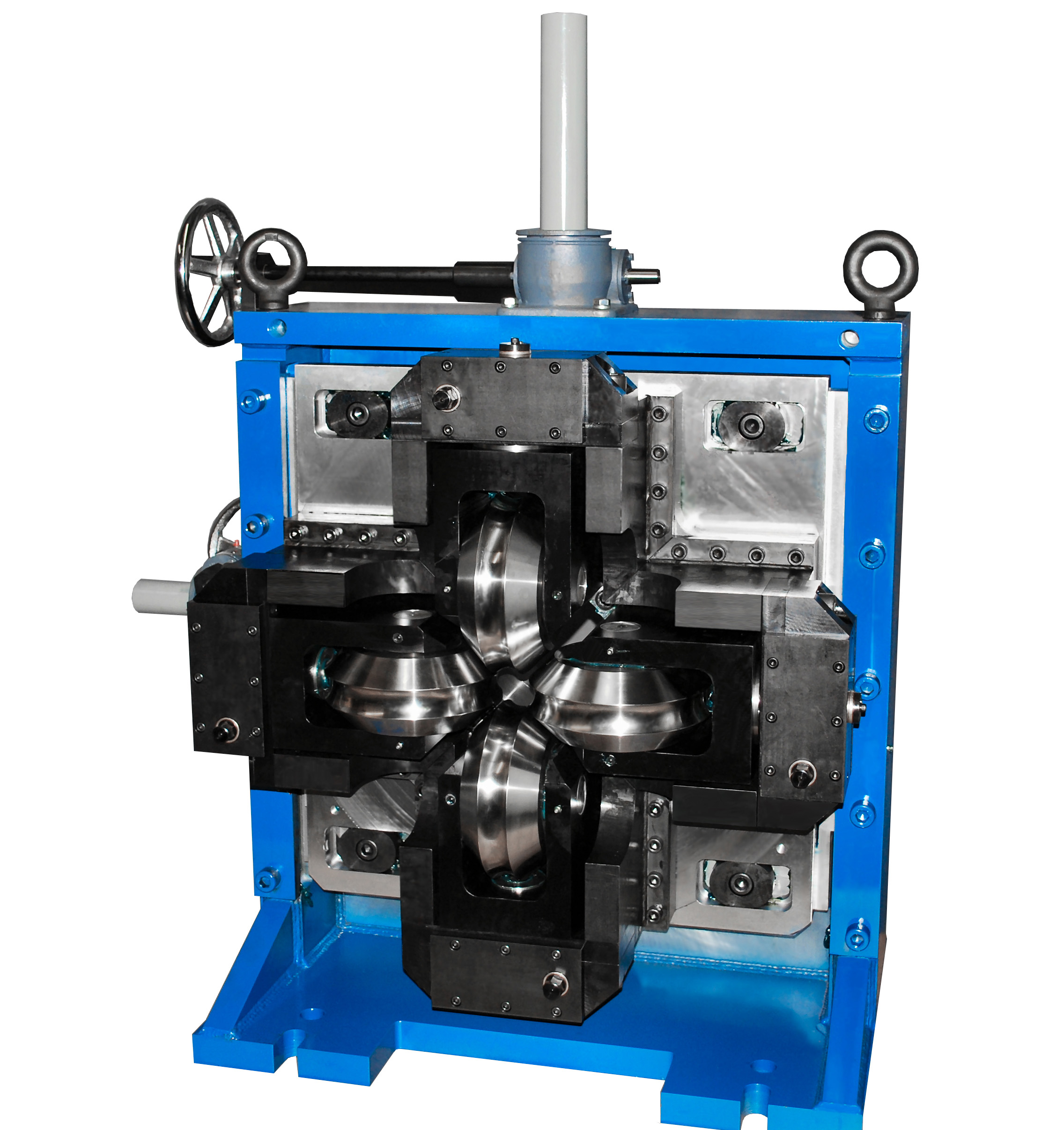

Turkshead Unit

Our Turkshead Units offer the quickest and easiest changeover in the industry, reducing tube mill downtime. Robust design and top-quality materials ensure that your Addison turkshead will hold up under even the most demanding conditions.

A Turkshead Unit straightens the tube. Specially designed turksheads reshape the tube into other shapes, such as square.

Addison Turkshead Units are designed and manufactured for your specific production requirements at our Reedsburg, WI facility.

Our Work

Turkshead Unit

Features

Single or Dual-Sided

Single- or dual-sided units.

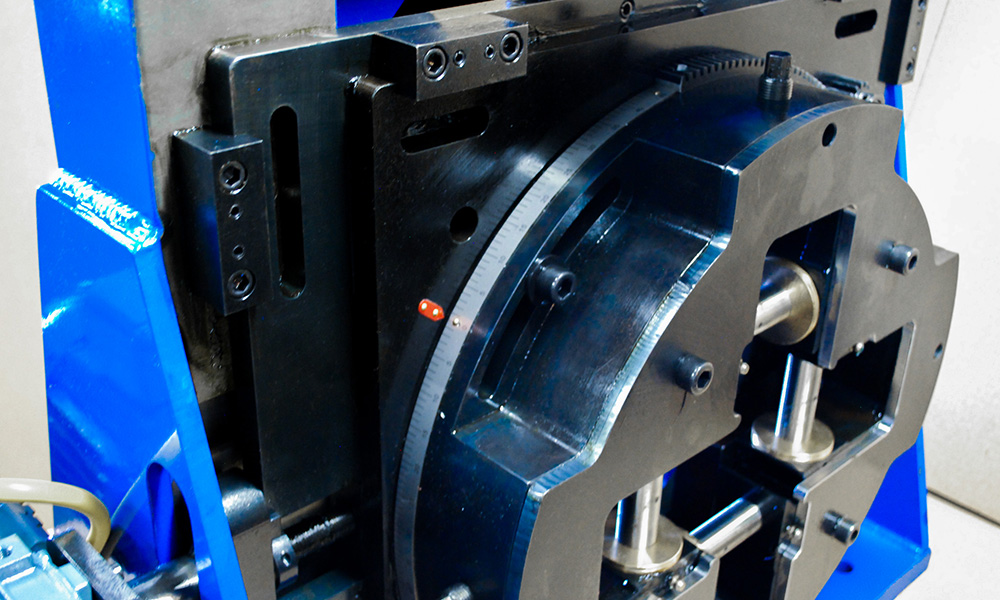

Double Rotary Housings

Double rotary roll housings: exit housing is used to create a bend point with reference to position of the entrance housing.

Vertical Adjustment

Entrance and exit housings are adjustable vertically to allow for variations in tube pass lines.

Horizontal Exit Adjustment

Exit housing is also adjustable in the horizontal plane to offset tube twisting.

Quick Roll Changeover

Roll clusters rigidly held in each rotary housing via individual clevis holders. Roll changeover is accomplished by easily removing the rotary cover plate (four bolts) and removing each individual clevis.

Accessible Lubrication

Lubrication points for the roll bearings are located on the roll clevises and are accessible on the face of the entrance and exit rotary housings.

Durable 4140 Material

All adjustment screws and wear surfaces are manufactured from 4140 preheated material for durability.

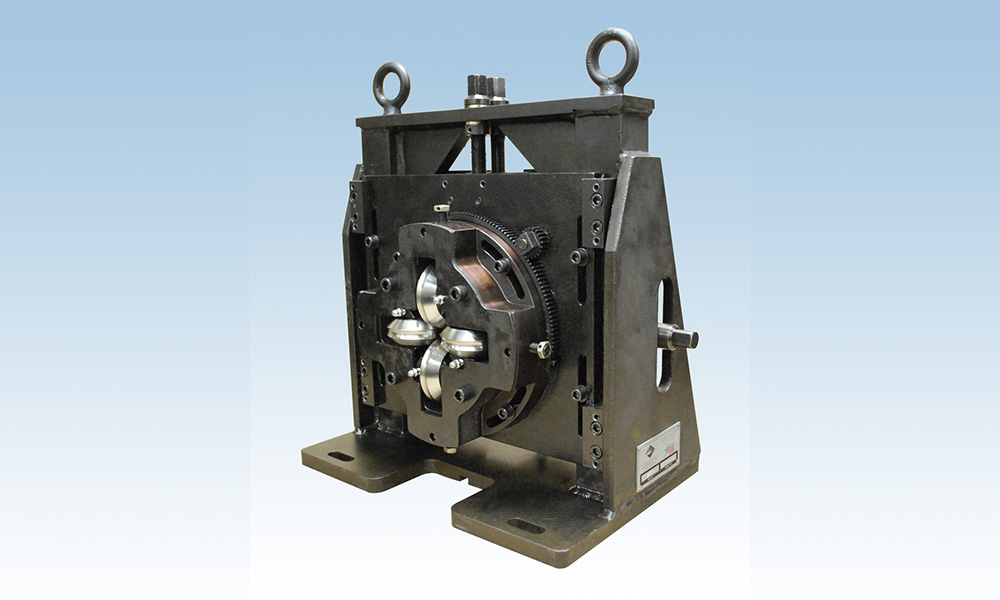

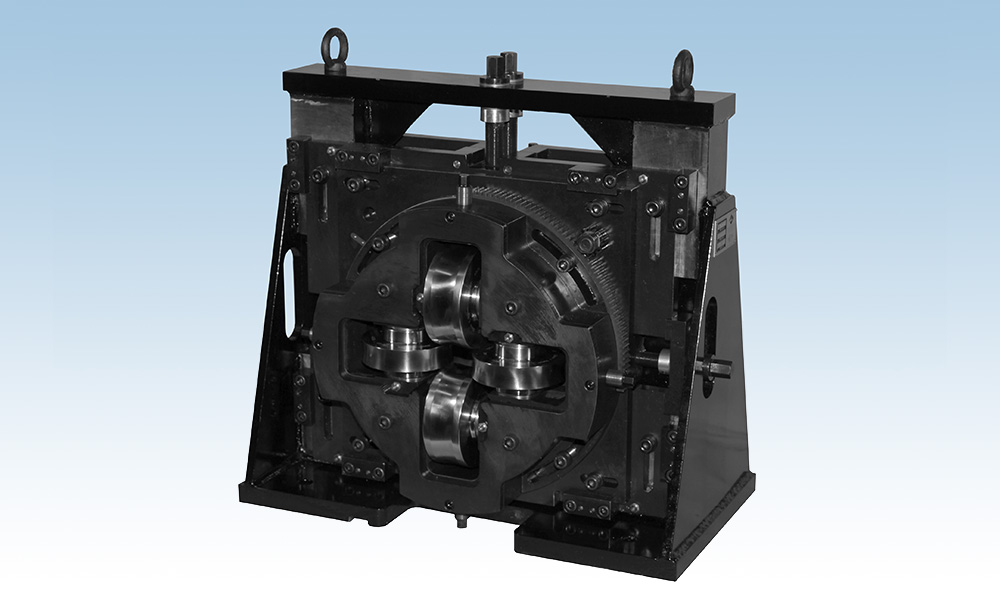

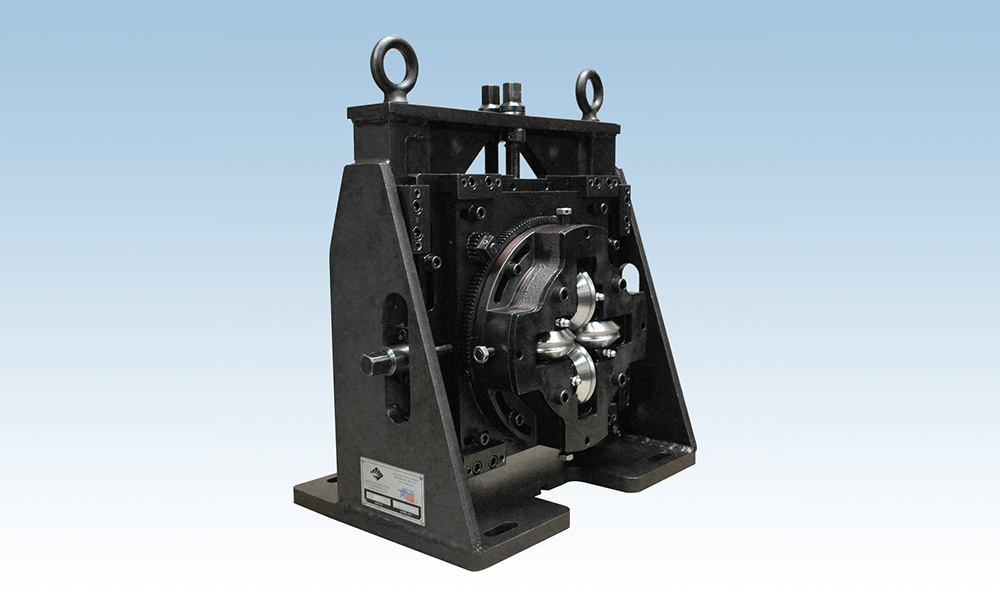

Product Views

Specifications

Single-Sided Turkshead Units

Model Number	Tube Size Range (Inch)
TH-050-SSU	.188" - 1.000" Dia.
TH-100-SSU	.250" - 1.500" Dia.
TH-200-SSU	.250" - 2.500" Dia.
TH-300-SSU	.750" - 3.000" Dia.
TH-400-SSU	1.000" - 4.000" Dia.
TH-500-SSU	1.500" - 5.500" Dia.
TH-600-SSU	1.500" - 6.000" Dia.

Specifications

Double-Side Turkshead Units

Model Number	Tube Size Range (Inch)	Additional Features
TH-050-DSU	.188" - 1.000" Dia.	.188" - .750" Square Tube
TH-200-DSU	.250" - 2.500" Dia.	.250" - 2.000" Square Tube
TH-300-DSU	.750" - 3.000" Dia.	.500" - 2.500" Square Tube
TH-400-DSU	1.000" - 4.000" Dia.	.750" - 3.250" Square Tube

It's About Partnerships

Let's Build What's Next.

We partner with tubular and roll forming producers to solve problems and provide solutions. Tell us about your application and our team will help you find the right one.

Contact Our Team Or call (888) AME-ROLL
