The Entry Guide ensures the strip enters mill centered and straight and that the strip is formed symmetrically about the centerline of the mill.
This is even more important when using edge form breakdown rolls to ensure proper edge break angles on both sides.

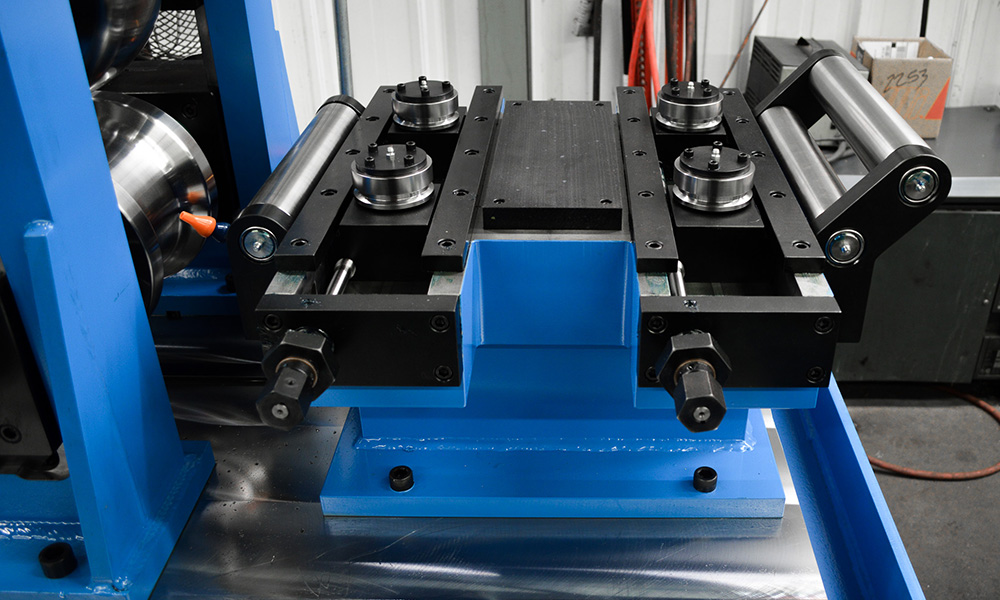

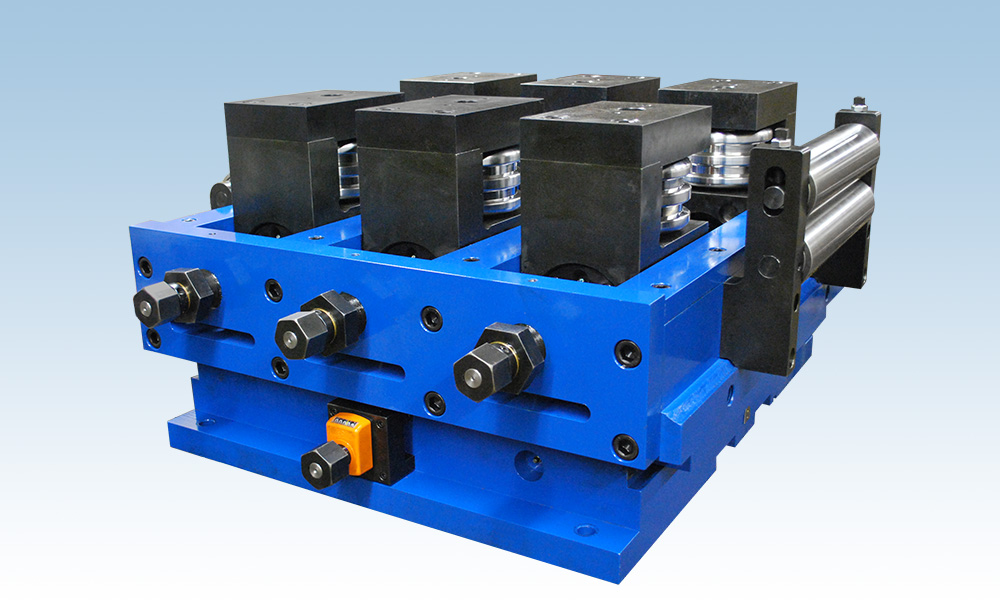

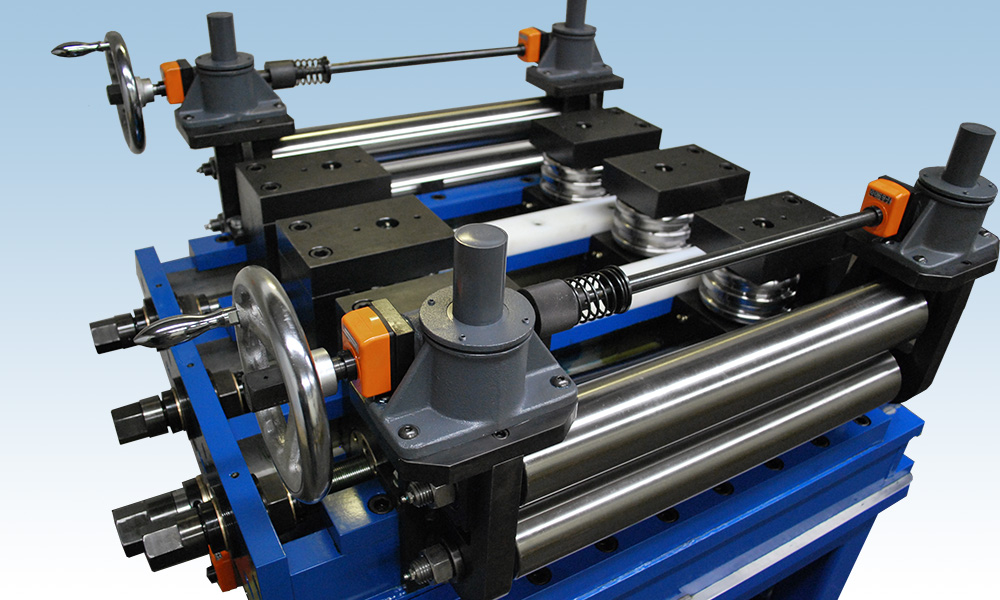

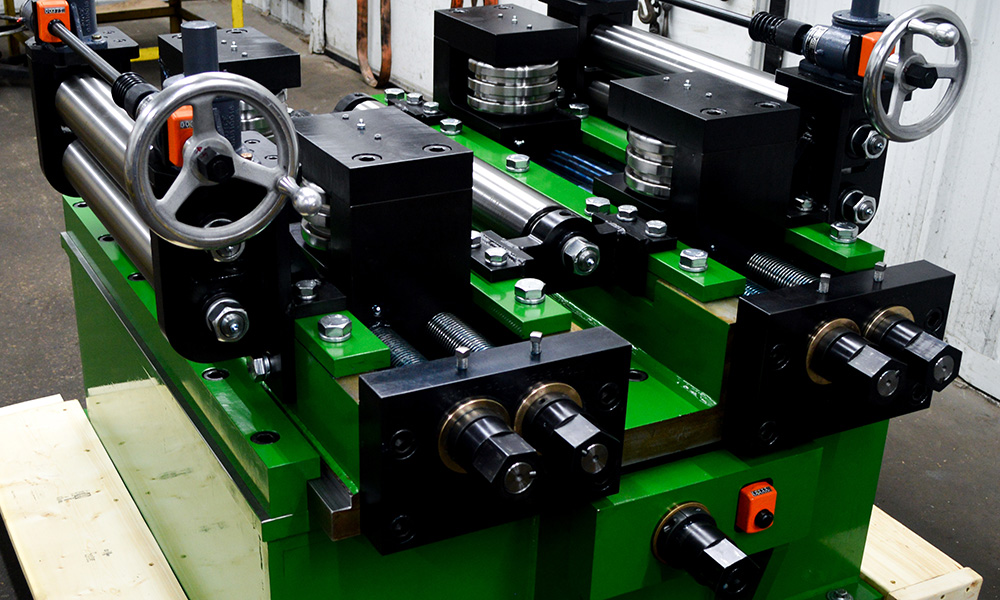

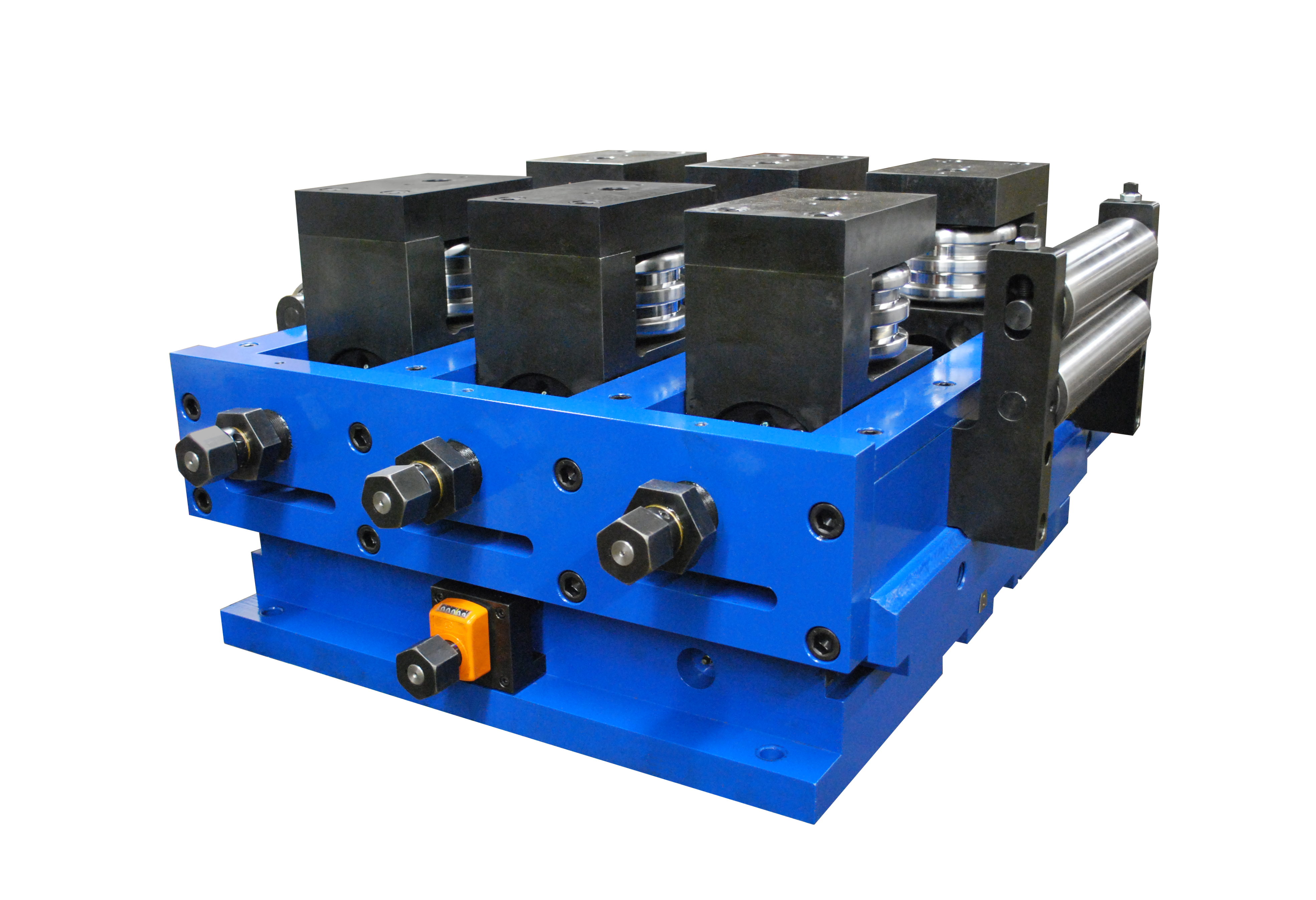

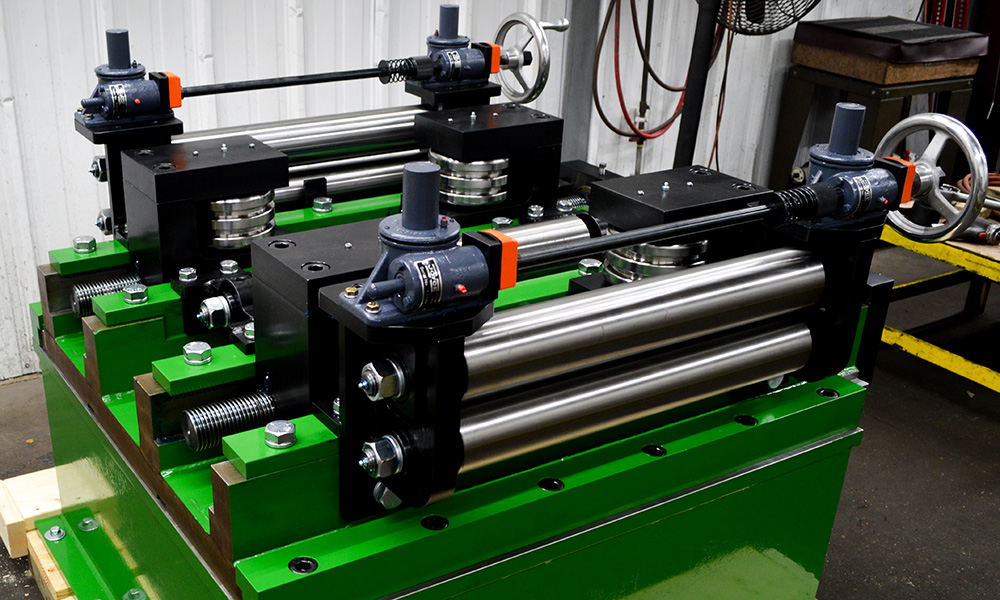

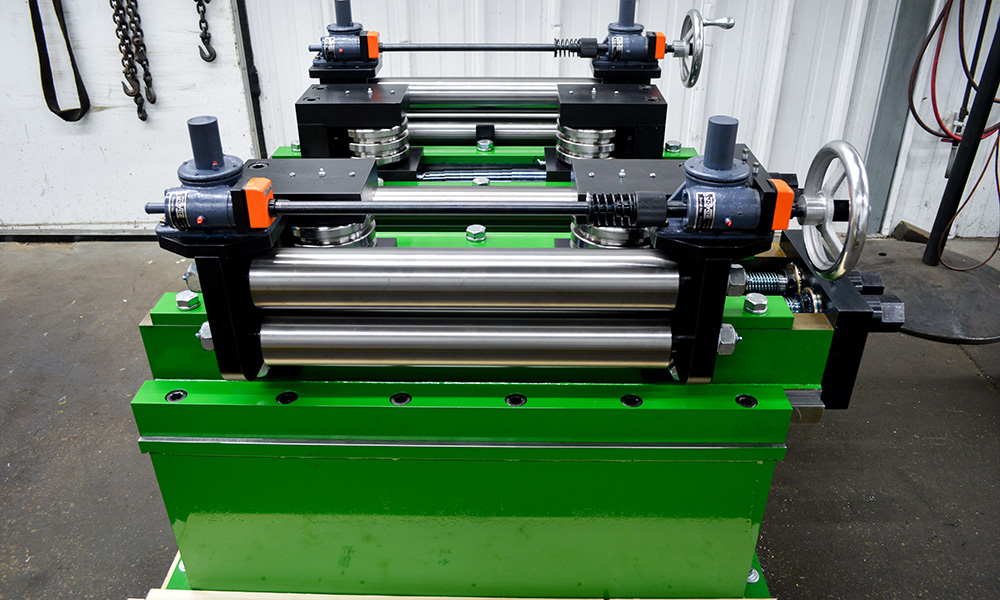

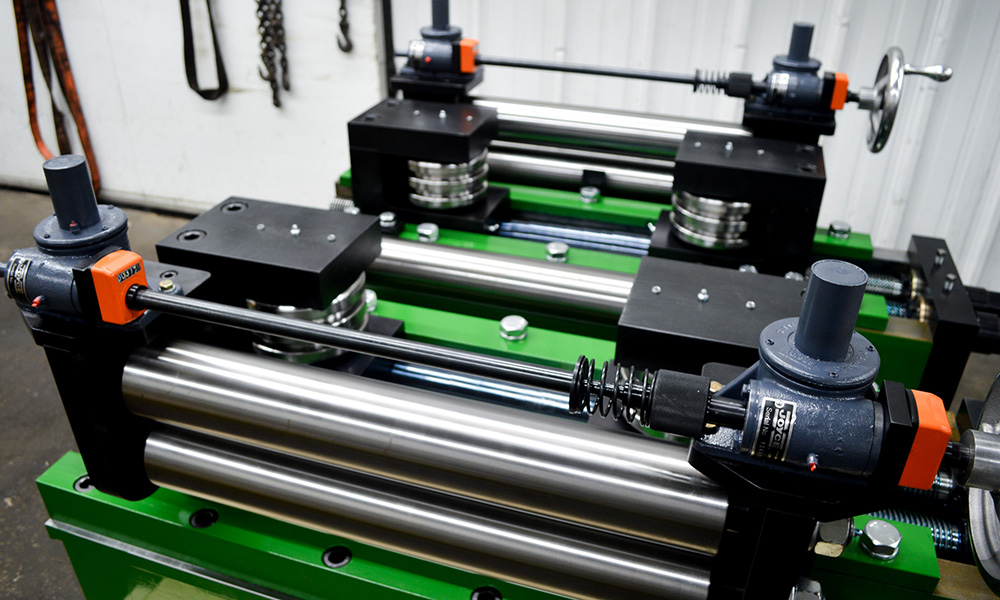

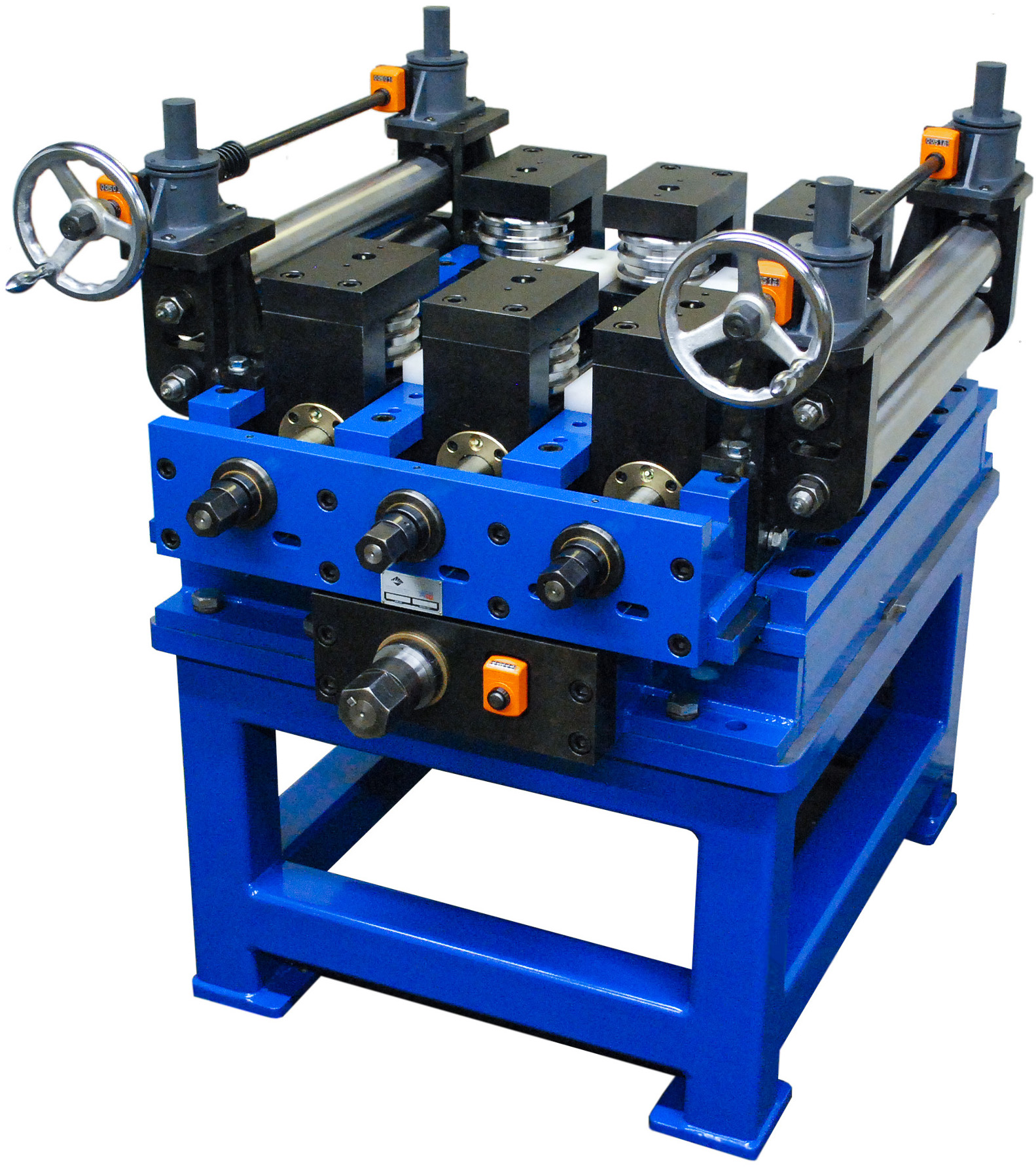

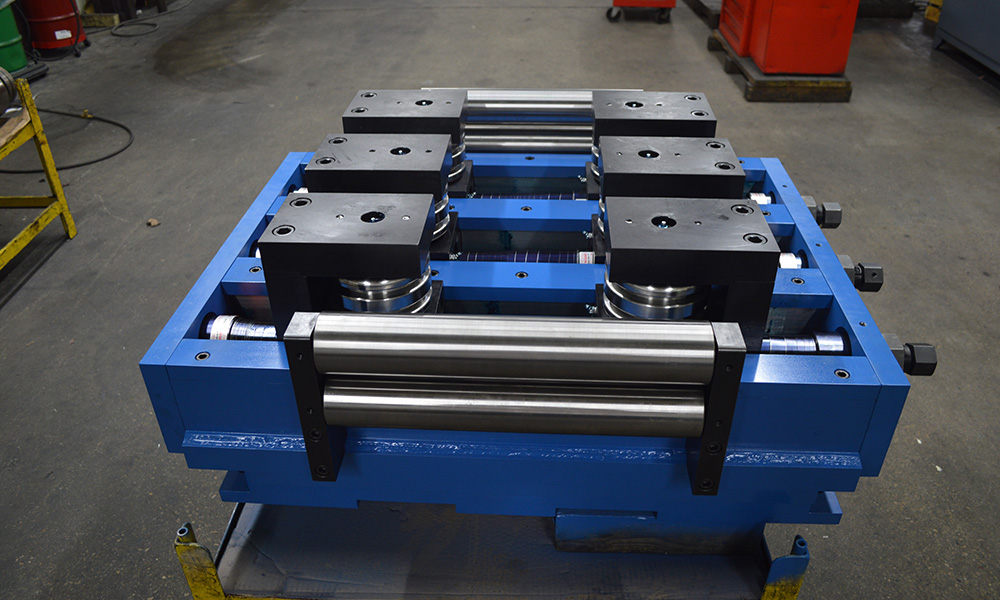

Entry Guide Unit
Welded steel support frame.
Two hardened conveyor-type rollers on entrance side of unit and one-hardened type roller on exit side provide proper feeding of the strip in and out of unit.

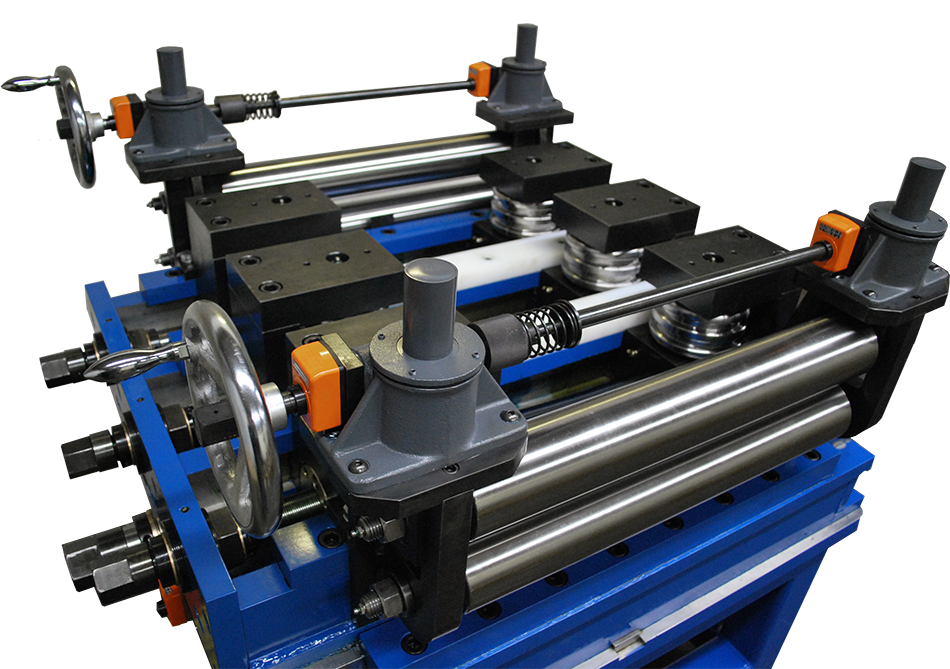

Four hardened guide rollers (with grooves) are mounted via cam followers to effectively guide the strip into tube mill. Rollers adjustable as pairs, in and out from the centerline of the tube mill.
Special tool design keeps scrap off of tube.
Product Views
